Semiconductor photolithography requires lighting that prevents unwanted exposure of photoresist. Choosing the correct yellow LED tube is therefore critical. While many yellow LED tubes use a 500nm spectral cut-off, newer 530nm solutions provide a larger spectral safety margin that helps reduce the risk of short-wavelength leakage caused by manufacturing tolerances, spectral variation and long-term aging.

This paper compares the technical characteristics of conventional 500nm yellow LED tubes with 530nm solutions and discusses their impact on safety, lighting performance, and installation flexibility.

Why Cut-off Wavelength Matters

Photoresists used in semiconductor manufacturing are highly sensitive to ultraviolet and blue light. Even a small amount of short-wavelength leakage may contribute to unwanted exposure, reducing process stability and production yield.

For this reason, yellow lighting is designed to block hazardous wavelengths while transmitting longer wavelengths that remain safe for operators.

The effectiveness of a yellow LED tube depends not only on whether it blocks ultraviolet and blue light, but also on the margin of safety provided by its spectral cut-off.

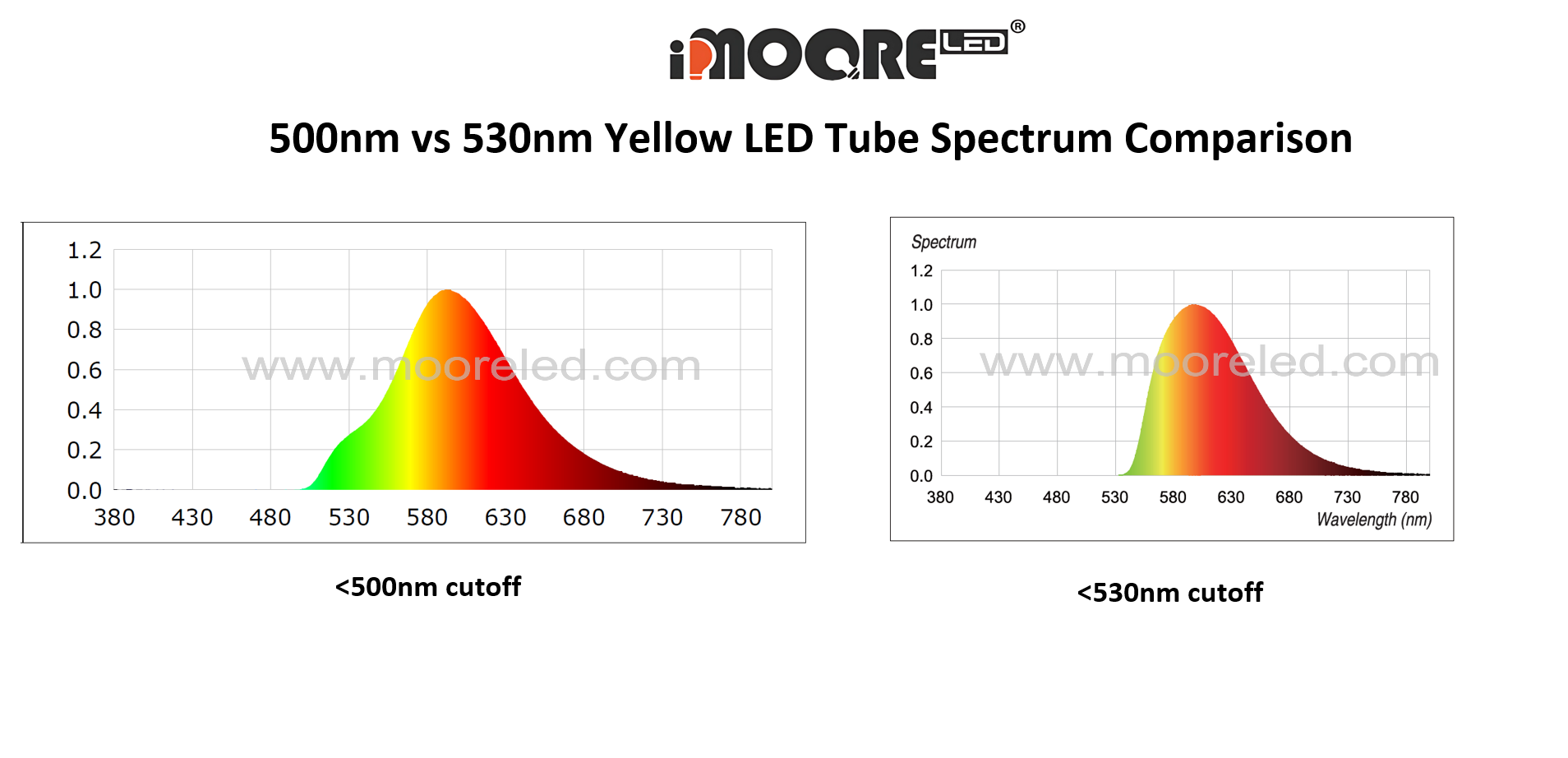

500nm vs. 530nm Cut-off

A yellow LED tube with a 530nm spectral cut-off provides an additional spectral safety margin compared with a conventional 500nm cut-off design.

This wider protection window helps reduce the possibility of short-wavelength leakage caused by:

• Manufacturing tolerances
• LED spectral variation between production batches
• Temperature-related spectral shift
• Optical filter aging over time
• Measurement uncertainty during testing

Rather than simply extending the blocked wavelength range by 30nm, the additional spectral margin improves confidence that harmful wavelengths remain effectively suppressed throughout the product's service life.

For semiconductor manufacturers operating highly sensitive lithography processes, this additional margin can contribute to more stable process control and lower risk of unintended photoresist exposure.

Performance Comparison

Specification	Conventional 500 nm Solution	Moore 530 nm Yellow LED Tube
Spectral Cut-off	<500 nm	<530 nm
Spectral Protection	Standard	Wider Spectral Safety Margin
Luminous Efficiency	Approximately 100 lm/W	Standard 100 lm/W; High-Efficiency Version up to 170 lm/W
Input Voltage	100–277 VAC	100–305 VAC
Available Lengths	Limited Standard Sizes	600 mm, 1047 mm, 1200 mm, 1500 mm
Custom Lengths	Usually Not Available	Available upon Request

Higher Energy Efficiency

Lighting efficiency directly affects energy consumption and operating costs in cleanrooms that operate continuously.

While standard yellow LED tubes typically provide around 100 lm/W, high-efficiency versions can achieve up to 170 lm/W, allowing facilities to reduce power consumption without compromising spectral protection.

This is particularly beneficial for large semiconductor fabs where thousands of luminaires operate around the clock.

Greater Installation Flexibility

Semiconductor facilities often require lighting systems that match existing fixtures rather than replacing complete lighting assemblies.

Besides standard lengths, customized tube lengths can simplify retrofit projects, reduce installation costs, and accommodate special equipment layouts.

Available lengths include:

• 600 mm
• 1047 mm
• 1200 mm
• 1500 mm

Custom dimensions can also be manufactured according to project requirements.

Wider Operating Voltage Range

Industrial power quality may vary between facilities and regions.

Supporting an input voltage range of 100–305 VAC allows a single product platform to accommodate a wider variety of electrical systems while providing greater tolerance to supply voltage fluctuations.

This flexibility simplifies inventory management for multinational projects and OEM equipment manufacturers.

Flicker-Free Lighting for Precision Working Environments

Semiconductor operators often work under yellow lighting for extended periods.

A high-quality flicker-free LED driver helps maintain stable light output, reducing visible flicker caused by AC power fluctuations and improving visual comfort during precision inspection and manufacturing tasks.

Stable illumination is particularly valuable in cleanroom environments where operator concentration and visual accuracy are essential.

Selecting the Right Yellow LED Tube

When evaluating yellow LED tubes for semiconductor applications, engineers should consider more than luminous output alone.

Important evaluation criteria include:

• Spectral cut-off wavelength
• Spectral safety margin
• Long-term spectral stability
• Energy efficiency
• Driver quality
• Input voltage range
• Available sizes and customization capability
• Reliability in cleanroom environments

Selecting a lighting solution with appropriate spectral protection and stable

optical performance can help support consistent manufacturing quality while reducing maintenance and operating costs.

Conclusion

As semiconductor manufacturing continues to advance toward smaller process nodes and increasingly sensitive photoresists, lighting systems must provide both reliable spectral protection and efficient illumination.

A 530 nm spectral cut-off offers an expanded spectral safety margin compared with traditional 500 nm solutions, helping minimize the risk of short-wavelength leakage resulting from manufacturing tolerances, spectral variation, environmental influences, and long-term aging.

Combined with high luminous efficacy, wider input voltage support, multiple tube lengths, customization options, and flicker-free operation, modern 530 nm yellow LED tubes provide an attractive solution for semiconductor fabrication facilities, PCB manufacturing, optical laboratories, and other yellow-light environments requiring dependable spectral performance.

Technical comparison in this paper is based on publicly available product specifications and is intended solely for engineering discussion and product evaluation.
