High Efficacy PC LED Tube-Moore Technology

High Efficacy PC LED Tube

Application： Semiconductor Cleanroom White Light Area， TFT-LCD/OLED Display Cleanroom， Precision Optical(MEMS) Workshop， PCB Printed Circuit Board Workshop， Solar Panel / Lithium Battery Production Workshop. 应用场景：半导体洁净车间白光区， TFT-LCD/OLED显示器洁净车间照明，精密光学微机电（MEMS）车间照明， PCB印刷电路板照明车间，太阳能电池板/锂电池生产车间照明
contact us

SPECIFICATIONS

· High efficiency and energy saving, saving over 60% electricity compared to fluorescent lamps, with luminous efficacy up to 190lm/w.
· Two-stage flicker-free driver design, more reliable and stable; light does not flicker with grid fluctuations.
· Dual-color all-plastic tube design with wide beam angle and uniform illumination
· Flame-retardant PC housing, safe and reliable.

· Eco-friendly: free of lead, mercury and other pollutants, truly green.

Model	MT-P06W-8XXG1306-S	MT-P13W-865G1311-S	MT-P13W-865G1312-S	MT-P18W-865G1315-S
Lumen	1040lm	2080lm	2080lm	2880lm
Power	6.5W	13W	13W	18W

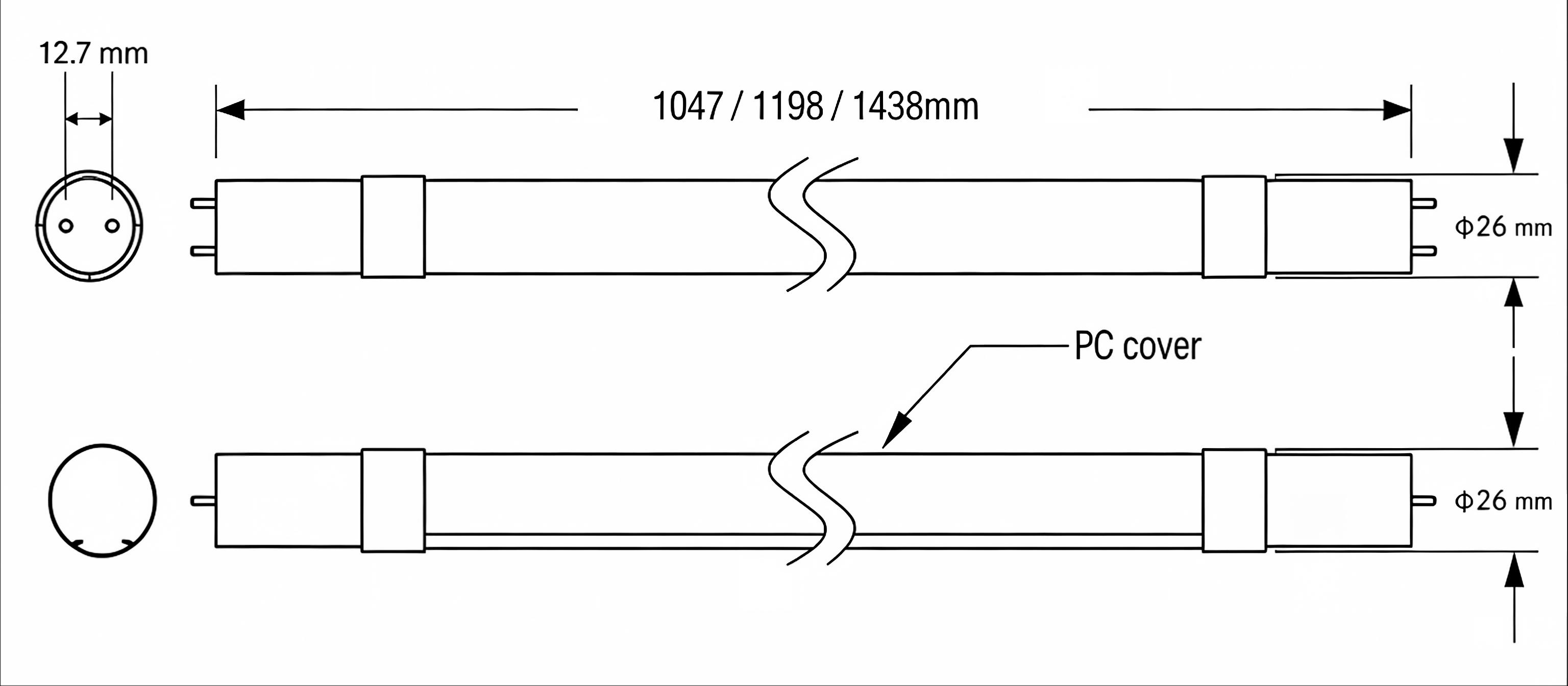

Dimension	L588/580mm X φ26mm	L1047mm X φ26mm	L1198mm X φ26mm	L1498mm X φ26mm
Input Voltage	AC100-277V 50Hz/60Hz	AC100-277V 50Hz/60Hz	AC100-277V 50Hz/60Hz	AC100-277V 50Hz/60Hz
PF	＞0.9	＞0.9	＞0.9	＞0.9
CRI	RA80	RA80	RA80	RA80
THD	＜15%（AC220V）	＜15%（AC220V）	＜15%（AC220V）	＜15%（AC220V）
Flicker	Flicker Coefficient <0.02 / Flicker Percentage <2%	Flicker Coefficient <0.02 / Flicker Percentage <2%	Flicker Coefficient <0.02 / Flicker Percentage <2%	Flicker Coefficient <0.02 / Flicker Percentage <2%
Electrical Class	Class 2	Class 2	Class 2	Class 2
IP Rating	IP40	IP40	IP40	IP40
Operating Temperature	-20℃~+40℃	-20℃~+40℃	-20℃~+40℃	-20℃~+40℃
Certification	CE/CB/PSE/ETL/CQC/ROHS	CE/CB/PSE/ETL/CQC/ROHS	CE/CB/PSE/ETL/CQC/ROHS	CE/CB/PSE/ETL/CQC/ROHS
